D50L D50P B
dolne o rozstawie 50 mm położone z lewej strony
bottom wi th 50 mm pi tch placed on the left .
dolne o rozstawie 50 mm położone z prawej strony
bottom wi th 50 mm pi tch placed on the r ight .
boczne z możl iwością podłączenia z prawej lub lewej strony, tylko modele o wysokości 400 i 575 mm
top-bottom same end with the possibility to connect on the right or left-hand side. Only for models of 400 and 575 mm height.
AFR-100/10 AFR-120/10 AFR-160/20 AFR-180/14 AFR-060/40
AFR-040/22
B
B
K
K
DOLNE
bottom
BOCZNE
top-bottom same end top-bottom oposite end

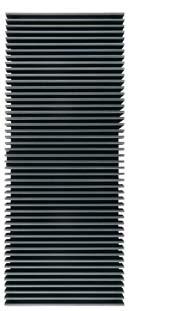

Grzejnik AFRO w standardowym wykonaniu posiada podłączenie dolne D50 o rozstawie 50mm.
A standard AFRO radiator has bottom D50 connection with 50 mm pitch.
Rysunki mają charakter poglądowy i prezentują modele przykładowe.
Pictorial drawings present selected example models.
WYBRANY MODEL / selected model
Podłączenie boczne jest uniwersalne (lewe i prawe).
Top-bottom connection is universal (left or right).
D50
D50
D50L
D50P
97 TABELE MOCY / output tables
AFR
WYKONANIE STANDARDOWE
bez dodatkowego oznaczenia: AFR-120/24
STANDARD EXECUTION
no extra markings: AFR-120/24
DOSTĘPNE OPCJE WYKONANIA
np. AFR-120/24D50PC11
AVAILABLE OPTIONS e.g. AFR-120/24D50PC11
-
dolne o rozstawie 50 mm, na środku grzejnika
central bottom with 50 mm pitch connection
zawieszany na ścianie
wal l -mounted
stal węglowa
carbon steel
nie występuje
not appl icable
farba kolor: biały si lk
paintcolour: whi te si lk
INDEKS
index
SKRÓT NAZWY
abbreviated name
SEPARATOR
hyphen
ROZMIAR
size
PODŁĄCZENIE
connect ion
MOCOWANIE
mount ing
MATERIAŁ
mater ial
WYPOSAŻENIE
accessor ies
POWŁOKA
coat ing
POTRZEBUJESZ POMOCY?
need help?
14
120/24
C11-C54
farba, wybrany kolor wg palety
paint , selected colour by the palette
128
UZUPEŁNIJ INDEKS O ZAPIS ROZMIARU GRZEJNIKA NA PODSTAWIE TABELI MOCY
MAKE SURE YOU INCLUDE THE RADIATOR SIZE DESIGNATION FROM THE OUTPUT TABLE IN THE INDEX
97
97
Uzupełnij indeks o zapis rozmiaru grzejnika na podstawie tabeli mocy
make sure you include the radiator size designation from the output table in the index
