WYMIARY / dimensions PODŁĄCZENIE / connection MOC / output INFORMACJE DODATKOWE / additional information
mm mm mm mm mm W W W kg dm3 m2 W ZEB-50/120
500
1 220
103
dolne
bottom
50 -
269 524 665 17,2 5,6 1,11 1,2843 300 ZEB-50/150 1 520 337 658 835 21,5 7,0 1,40 1,3085 600 ZEB-60/120
600
1 220
103
dolne
bottom
50 -
320 616 779 20,1 6,7 1,31 1,2843 600 ZEB-60/150 1 520 385 752 955 25,1 8,2 1,64 1,3085 900
DOLNE
bottom
D50
G 1/4''
SCHEMAT MONTAŻOWY
assembly diagram

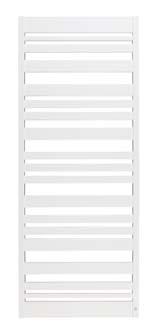

WYBRANY MODELE / selected models
Osie króćców przyłączeniowych są położone prostopadle do ściany
The connect ing studs are perpendicular to the wal l .
Chromowany zestaw zaworowy z głowicą jest standardowym wyposażeniem grzejnika.
A chrome-plated valve set with a head comes standard with the radiator.
Nowość.
Możliwość współpracy z grzałką.
New!
Possible application of an electric heating element.
inspiracja: kolor Graphite
Inspiration: colour: Graphite
128
ZEB
WYKONANIE STANDARDOWE
bez dodatkowego oznaczenia: ZEB-60/120
STANDARD EXECUTION
no extra markings: ZEB-60/120
DOSTĘPNE OPCJE WYKONANIA
np. ZEB-60/120C11
AVAILABLE OPTIONS
e.g. ZEB-60/120C11
- 60/120
dolne, z prawej strony, położone od tyłu o rozstawie 50mm
bottom r ight wi th 50 mm pi tch at the back of the radiator.
zawieszany na ścianie
wal l -mounted
stal węglowa
carbon steel
nie występuje
not appl icable
farba kolor: biały si lk
paintcolour: whi te si lk
INDEKS
index
SKRÓT NAZWY
abbreviated name
SEPARATOR
hyphen
ROZMIAR
size
PODŁĄCZENIE
connect ion
MOCOWANIE
mount ing
MATERIAŁ
mater ial
WYPOSAŻENIE
accessor ies
POWŁOKA
coat ing
POTRZEBUJESZ POMOCY?
need help?
14
C11. . .
farba, wybrany kolor wg palety
paint, selected colour by the palette
