WYMIARY / dimensions PODŁĄCZENIE / connection MOC / output INFORMACJE DODATKOWE / additional information
mm mm mm mm mm W W W kg dm3 m2 W IND-40/120E34L01
380
1 200
96
dolne
bottom
50 57
243 474 601 18,2 5,0 0,99 1,3040 -IND-40/160E34L01 1 600 317 617 782 24,6 7,0 1,37 1,3020 -IND-40/180E34L01 1 800 351 683 867 27,8 8,0 1,56 1,3056 -IND-40/200E34L01 2 000 382 745 946 31,0 9,0 1,75 1,3092 -IND-50/120E34L01
480
1 200 313 610 774 23,1 6,8 1,33 1,3047 -IND-50/160E34L01 1 600 410 795 1 007 31,3 9,5 1,83 1,2981 -IND-50/180E34L01 1 800 453 880 1 116 35,5 11,2 2,08 1,3019 -IND-50/200E34L01 2 000 493 960 1 218 39,6 12,8 2,33 1,3057 -IND-60/160E34L01
570
1 600 494 957 1 212 37,3 11,8 2,29 1,2945 -IND-60/180E34L01 1 800 546 1 060 1 343 42,4 14,0 2,60 1,2985 -IND-60/200E34L01 2 000 595 1 157 1 467 47,4 16,2 2,91 1,3025 -
D50
D50
DOLNE
bottom
Więcej funkcjonalności?
Czasem niewielki dodatek zmienia bardzo wiele. Zajrzyj do BOUTIQUE na stronie 122 i zobacz dedykowane akcesoria zaprojektowane specjalnie dla INDIVI .
MORE FUNCTIONALITY?
Sometimes a minor detail can make a world of difference. Go to BOUTIQUE on page 122 and check the dedicated accessories specially designed for INDIVI.
WYBRANE MODELE / selected models
IND
WYKONANIE STANDARDOWE
bez dodatkowego oznaczenia: IND-60/160E34L01
STANDARD EXECUTION
no extra markings: IND-60/160E34L01
DOSTĘPNE OPCJE WYKONANIA
np. IND-60/200E34L02
AVAILABLE OPTIONS
e.g. IND-60/200E34L02
- 60/160 E34L01
dolne o rozstawie 50 mm na środku grzejnika
central bottom wi th 50 mm pi tch
zawieszany na ścianie
wal l -mounted
stal węglowa
carbon steel
eran ze stali węglowej w kolorze white mat E34 i lustrem w kolorze L01
steel panel in whi te mat E34 colour and mi rror in L01 colour
farba kolor: biały si lk
paintcolour: whi te si lk
INDEKS
index
SKRÓT NAZWY
abbreviated name
SEPARATOR
hyphen
ROZMIAR
size
PODŁĄCZENIE
connect ion
MOCOWANIE
mount ing
MATERIAŁ
mater ial
WYPOSAŻENIE
accessor ies
POWŁOKA
coat ing
POTRZEBUJESZ POMOCY?
need help?
14
E11. . . L11. . .
ekran - lustro patrz powyżej , wybrany kolor wg palety
panel – mi rror (see above), selected colour by the palette
128
DOSTĘPNE KOLORY LUSTER
available mirror colours
SREBRNY / L01 silver / l01
GRAFIT / L02 graphite / L02

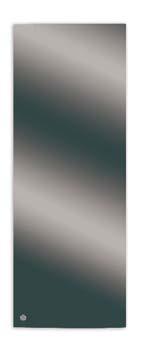

inspiracja: ekran lustro
Inspiration – mirror panel
polecamy dedykowane akcesoria: reling RS3
we recommend dedicated accessories: rail RS3
