WYMIARY / dimensions PODŁĄCZENIE / connection MOC / output INFORMACJE DODATKOWE / additional information
mm mm mm mm mm W W W kg dm3 m2 W DRA-60/120
600
1 225
73
dolne
bottom
50 60
279 534 673 14,4 4,2 0,94 1,2700
- DRA-60/160 1 625 360 675 845 18,5 5,2 1,24 1,2331
D50
D50
DOLNE
bottom
50
G 1/4''
G 1/2''
SCHEMAT MONTAŻOWY
assembly diagram
WYBRANE MODELE / selected models

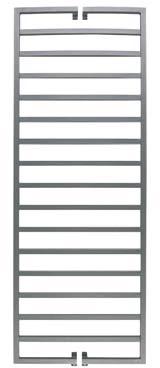

DRA
WYKONANIE STANDARDOWE
bez dodatkowego oznaczenia: DRA-60/120
STANDARD EXECUTION
no extra markings: DRA-60/120
DOSTĘPNE OPCJE WYKONANIA
np. DRA-60/120C11
AVAILABLE OPTIONS
e.g. DRA-60/120C11
- 60/120
dolne, o rozstawie 50 mm na środku grzejnika
central bottom, 50 mm pi tch
zawieszany na ścianie
wal l -mounted
stal węglowa
carbon steel
nie występuje
not appl icable
farba kolor: biały si lk
paintcolour: whi te si lk
INDEKS
index
SKRÓT NAZWY
abbreviated name
SEPARATOR
hyphen
ROZMIAR
size
PODŁĄCZENIE
connect ion
MOCOWANIE
mount ing
MATERIAŁ
mater ial
WYPOSAŻENIE
accessor ies
POWŁOKA
coat ing
POTRZEBUJESZ POMOCY?
need help?
14
inspiracja: kolor Fire
Inspiration: colour: Fire
108
podłączenie dolne D50
bottom connection D50
C11. . .
farba, wybrany kolor wg palety
paint, selected colour by the palette
128
