WYMIARY / dimensions PODŁĄCZENIE / connection MOC / output INFORMACJE DODATKOWE / additional information
mm mm mm mm mm W W W kg dm3 m2 W

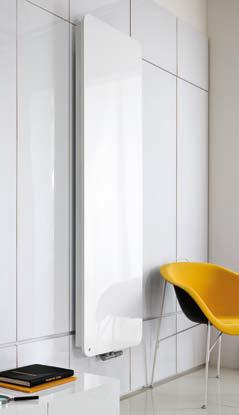

WERSJA: SZKŁO BIAŁE / version: white glass pane
INDN-50/160E34L04
480
1 600
96
dolne
bottom
50 57
410 795 1 007 31,3 9,5 1,83 1,2981 -INDN-50/180E34L04 1 800 453 880 1 116 35,5 11,2 2,08 1,3019 -INDN-50/200E34L04 2 000 493 960 1 218 39,6 12,8 2,33 1,3057 -INDN-60/160E34L04
570
1 600 494 957 1 212 37,3 11,8 2,29 1,2945 -INDN-60/180E34L04 1 800 546 1 060 1 343 42,4 14,0 2,60 1,2985 -INDN-60/200E34L04 2 000 595 1 157 1 467 47,4 16,2 2,91 1,3025 -
WERSJA: SZKŁO CZARNE / version: black glass pane
INDN-50/160E31L05
480
1 600
96
dolne
bottom
50 57
410 795 1 007 31,3 9,5 1,83 1,2981 -INDN-50/180E31L05 1 800 453 880 1 116 35,5 11,2 2,08 1,3019 -INDN-50/200E31L05 2 000 493 960 1 218 39,6 12,8 2,33 1,3057 -INDN-60/160E31L05
570
1 600 494 957 1 212 37,3 11,8 2,29 1,2945 -INDN-60/180E31L05 1 800 546 1 060 1 343 42,4 14,0 2,60 1,2985 -INDN-60/200E31L05 2 000 595 1 157 1 467 47,4 16,2 2,91 1,3025 -
WERSJA: LUSTRO / version: mirror
INDN-50/160E34L01
480
1 600
96
dolne
bottom
50 57
410 795 1 007 31,3 9,5 1,83 1,2981 -INDN-50/180E34L01 1 800 453 880 1 116 35,5 11,2 2,08 1,3019 -INDN-50/200E34L01 2 000 493 960 1 218 39,6 12,8 2,33 1,3057 -INDN-60/160E34L01
570
1 600 494 957 1 212 37,3 11,8 2,29 1,2945 -INDN-60/180E34L01 1 800 546 1 060 1 343 42,4 14,0 2,60 1,2985 -INDN-60/200E34L01 2 000 595 1 157 1 467 47,4 16,2 2,91 1,3025 -
D50
D50
DOLNE
bottom
DOSTĘPNE KOLORY LUSTER
available mirror colours
SREBRNY / L01 silver / L01
GRAFIT / L02 graphite / L02
DOSTĘPNE KOLORY SZYB
available glass pane colours
BIAŁY / L04 white / L04
CZARNY / L05 black / L05
INDN
WYKONANIE STANDARDOWE
bez dodatkowego oznaczenia: INDN-50/160E34L01
STANDARD EXECUTION
no extra markings: INDN-50/160E34L01
DOSTĘPNE OPCJE WYKONANIA
np. INDN-60/200E34L04
AVAILABLE OPTIONS
e.g. INDN-60/200E34L04
- 50/160 E34L04
dolne o rozstawie 50 mm na środku grzejnika
central bottom wi th 50 mm pi tch
zawieszany na ścianie
wal l -mounted
stal węglowa
carbon steel
eran ze stali węglowej w kolorze white mat E34 i lustrem w kolorze L01
steel panel in whi te mat E34 colour and mi rror in L01 colour
farba kolor: biały si lk
paintcolour: whi te si lk
INDEKS
index
SKRÓT NAZWY
abbreviated name
SEPARATOR
hyphen
ROZMIAR
size
PODŁĄCZENIE
connect ion
MOCOWANIE
mount ing
MATERIAŁ
mater ial
WYPOSAŻENIE
accessor ies
POWŁOKA
coat ing
POTRZEBUJESZ POMOCY?
need help?
14
E11. . . L11. . .
ekran - lustro lub szyba (patrz powyżej), wybrany kolor wg palety
mi rror or glass pane (see above) colour selected by the palette
128

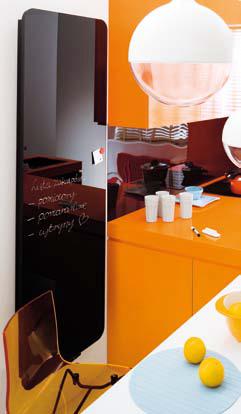

ROZWIŃ SWOJĄ KREATYWNOŚĆ
Zapisz ważne informacje, przemyślenia na... ekranie grzejnika. Specjalnie dla Ciebie w zestawie pisak i gąbka gratis!
LET YOUR CREATIVITY THRIVE
Write important information, ideas on… the radiator panel. Especially for you the set includes pen and eraser.
